1/2 HP Rocking Piston Compressor

From: $649.00

1/2 HP rocking piston compressor
For aerating ponds up to 2 acres
3 product variation options
Easy installation and set-up
Free shipping

MPC-12016A Model | MPC-12016C Model | MPC-12016C1 Model

Compressor Model

Clear

SKU: N/A Categories: Pond & Lake Aerators, Pond Aeration Systems Tag: Matala

Description
Reviews (0)

1/2 HP Rocking Piston Compressor by Matala

Matala’s rocking piston compressor is ideal for powering a pond aeration system. All of the components used are very high quality and have a very nice design. For this 1/2 HP compressor, Matala offers three model variations: the MPC-12016A, the MPC-12016C, and the MPC-12016C1. Scroll down for further details on which model is best for you! This is a great aeration system for ponds and lakes up to 2 acres.

1/2 HP Rocking Piston Compressor MPC-12016A

This is the 1/2 HP Rocking Piston Compressor double head model with air filter only. This stand alone compressor can be installed in a variety of applications. Adapt to your existing system or create a custom system.

Features included with the MPC-12016A:

1/2 HP; 115 volts; 60 Hz
Max amps 3.81 @115volts; 433 watts.
Max pressure 50 feet deep or 17.34 psi.
Oil-less non-lube piston and cylinder.
Safety Protected.

Cylinder hard coated for wear resistance.
Head design allows for easy replacement of piston seal.
Permanently lubricated bearings.
Balanced for smooth, low vibration operation.

1/2 HP Compressor with Manifold MPC-12016C

The manifold includes an oil filled pressure gauge to reduce indicator vibration. This gives a more accurate reading of the actual psi of your system. Also attached is a pressure relief valve which opens at approximately 17 psi to prevent damage to the compressor. The gang valves are high quality brass with 3/8″ barbs connectors. A short section of heat resistant hose is included so as to reduce heat to your air hose connection. All high quality components and very nice design.

This is a stand alone unit without any cabinet which is ready to install in your new or existing aeration system. The Matala Piston Compressor with air manifold is ideal as a replacement compressor for a variety of different manufacturer systems.

Features included with the MPC-12016C:

1/2 HP; 115 volts; 60 Hz
Max amps 3.81 @115V; 433watts
Max pressure 50 feet deep, 17.34 psi
3 way 3/8″ manifold valve.
Oil filled pressure gauge
Pressure relief valve
Heat protection hose.

Oil-less non lube piston and cylinder.
Cylinder hard coated for wear resistance.
Head design allows for easy replacement of piston seal.
Permanently lubricated bearings.
Balanced for smooth low vibration operation.
Safety protected.

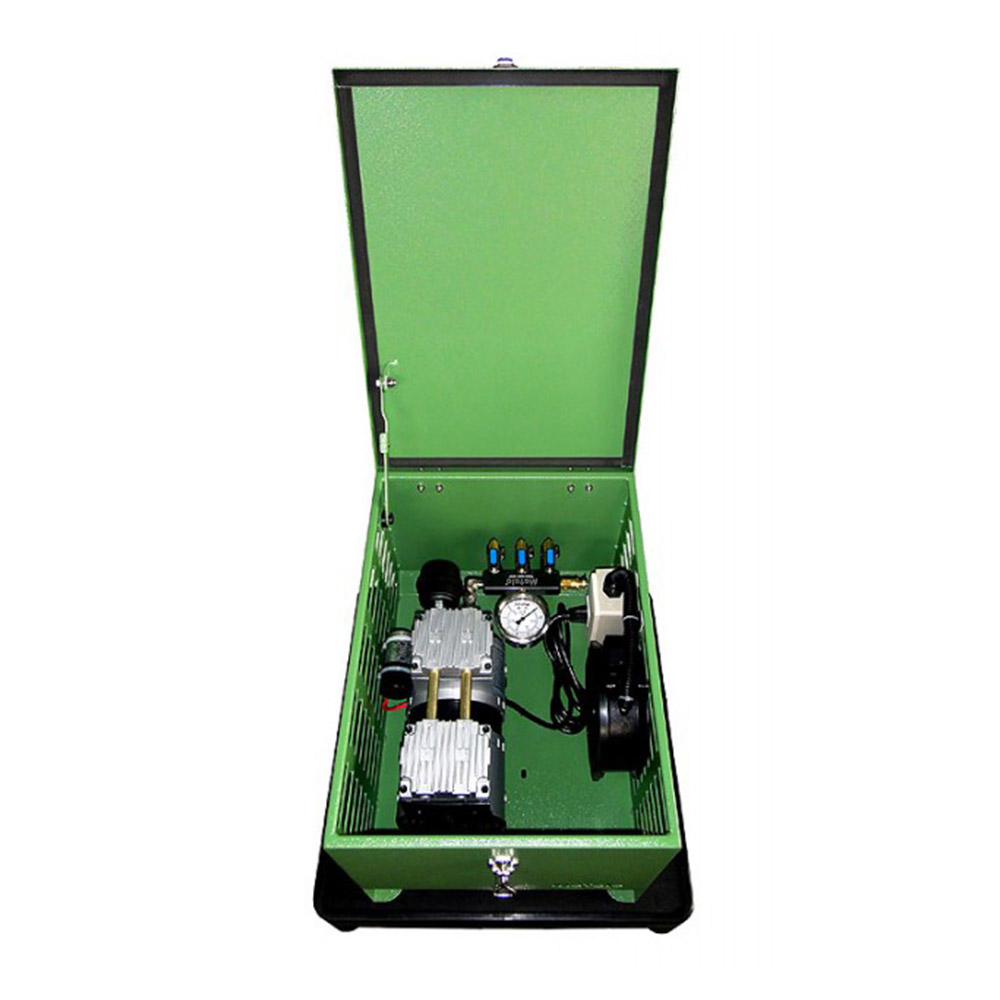

1/2 HP Rocking Piston Compressor with Cabinet MPC-12016C1

This Matala aeration system includes all the features of the MPC-12016C and it is built into a heavy duty cabinet. If you’re looking for the complete 1/2 HP Matala aeration system, check out the MEA Lake Pro 3. The locking cabinet is landscape green color and designed for outdoor extreme weather conditions. The cabinet stands on a solid support base to maintain a level installation. Within the cabinet we have added a cooling fan with cross flow ventilation. The compressor plugs into a built in GFI outlet. All components are protected within. The heat protection hose leads externally and all you have to do is connect your air hose. Very simple to install and operate.

The cabinet should be located above pond water level and flood zone and within 50 feet of the shore. Do not bury.

Features included with the MPC-12016C1:

1/2 HP compressor with 3 way manifold system (MPC-120C).
Full locking metal cabinet, landscape green color.
Support Base.

Built in GFI outlet.
Cross flow ventilation fan.
Easy install and operation.
Heavy weather resistant.

To help prevent overheating, please follow these recommendations

For the MPC-12016C

Only use in water less than 50 feet deep
Use 3/8″ air hose length up to 300 ft long; 5/8″ hose up to 600 ft long; 1″ hose up to 1000 ft long.
Use 3 way manifold and 3 hoses
