Bubble Pro Max XL Sub-Surface Aerator
This style of aerator has four diffuser modules that sit at the bottom of the pond, connected by weighted tubing which is in turn connected to an air compressor onshore. The compressor pumps much-needed air to the bottom of your pond, ensuring adequate oxygen levels during hot summer months.
Air is pumped from the compressor through the weighted airline to the diffusers at the pond bottom. When the air reaches the diffuser, several thousand small air bubbles are created. These bubbles rise to the surface and produce an upward current. Water at the pond bottom is lifted to the surface where oxygen is replenished by the atmosphere.
Designed for easy installation, the Bubble Pro Max XL comes with a 2 year warranty. The Bubble Pro Max XL works as a pond de-icer too!

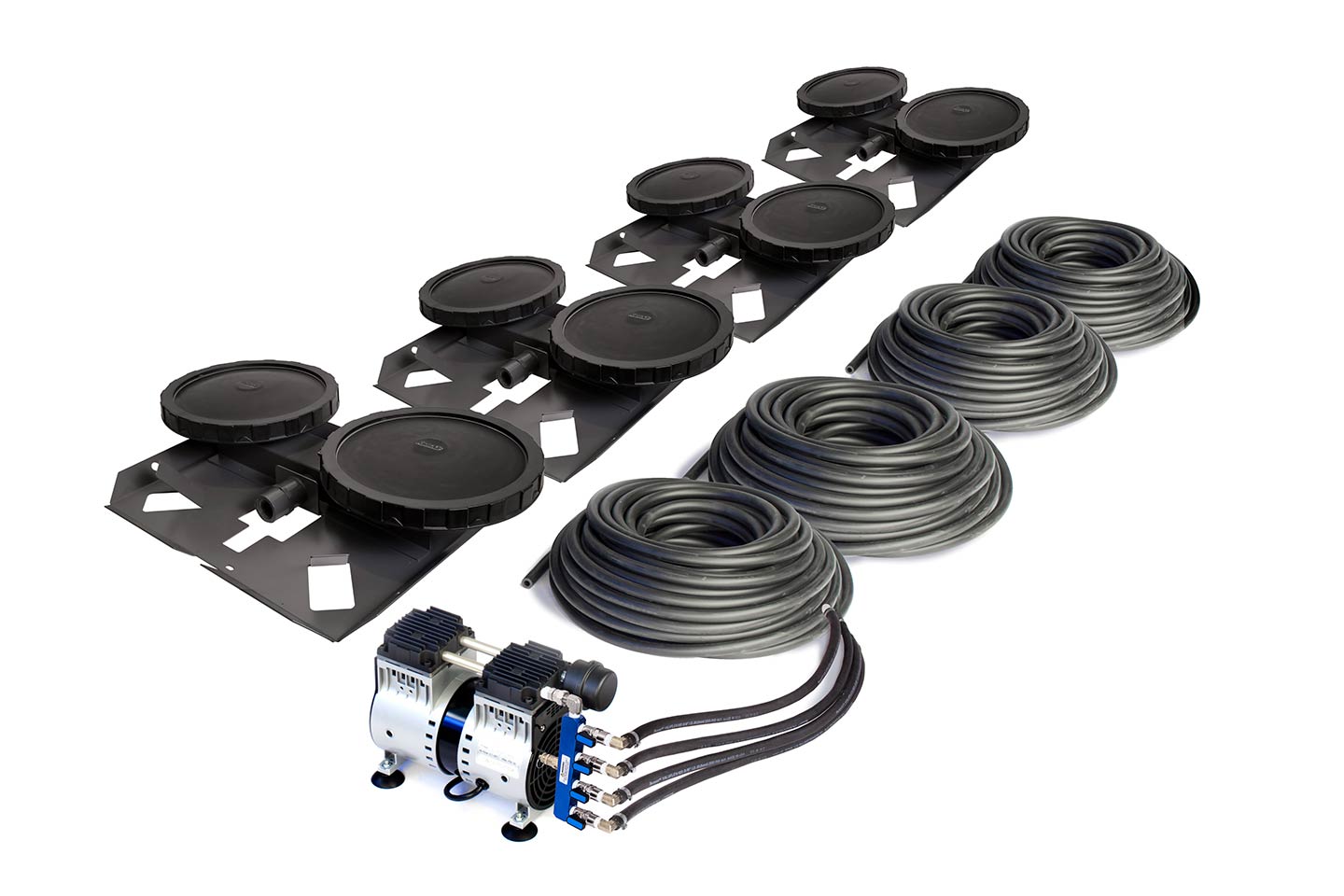

This Sub-Surface Aeration System Includes
1 – 3/4 HP 115 volt or 230 volt compressor
4 – Self weighted diffuser bases
8 – Diffuser membranes
4 – Rolls 3/8″ x 100 foot self-weighted air tubing
1 – Quadruple valve assembly
4 – Barbed check valve fittings
8 – Hose clamps
4 – Padded hose clamps
Coverage Area of This Aeration System
1 acre at 5 to 8-foot pond depth
2 acres at 9 to 12-foot pond depth
4 acres at 13 to 16-foot pond depth
Optional: Lockable Weatherproof Compressor Cabinet
Protect your Bubble Pro Max XL Sub-Surface Aeration compressor from the elements by using Scott Aerator’s weatherproof, steel lockable cabinet. This economical enclosure features a built-in, 110 volt or 230 volt exhaust fan and louvers to allow fresh air circulation, along with knock-outs for power cord and air lines. Green color blends well into the existing landscape. Measures 18″ long, 11.5″ wide and 11.5″ tall. Made in Michigan!
Optional: Weatherproof Compressor Cabinet
Protect your aeration compressor from the elements by using Scott Aerator’s weatherproof, molded-polyethylene cabinet. This economical enclosure features a built-in, 110-volt or 230-volt exhaust fan and louvers to allow fresh air circulation, along with perforated knock-outs for power cord and air lines. Tan color blends well into existing landscape. Measures 25″ long, 15″ wide and 15″ tall.
Optional: Mechanical Timer
Adding one of our mechanical timers to your fountain provides ease and convenience. This timer works on all of our 115 volt fountains and aerators!
This industry-rated outdoor timer is perfect for any of our 230 volt fountains or aerators. It has an easy-set design that makes this a perfect timer for both residential and commercial applications.
