Airmax SolarSeries Solar Pond Fountain with 3 Spray Patterns
The Airmax SolarSeries Solar Powered Fountain offers a clean, efficient way to bring both beauty and aeration to off-grid ponds. Powered entirely by solar energy, this system delivers reliable performance without increasing your electric bill—making it an excellent choice for remote locations or environmentally conscious installations.
Designed for ponds up to 1 acre and depths of 6–8 feet, the SolarSeries Fountain provides effective water circulation while creating an eye-catching display. In full sunlight, it produces strong, dynamic spray patterns that enhance the look and health of your pond.
With three included nozzle options and additional patterns available, you can easily customize the appearance to fit your setting. The system is built for convenience, featuring tool-free assembly and quick nozzle changes so setup and adjustments are simple.
Once installed, the fountain runs on 100% renewable solar power, giving you consistent operation with zero ongoing energy costs and minimal environmental impact.

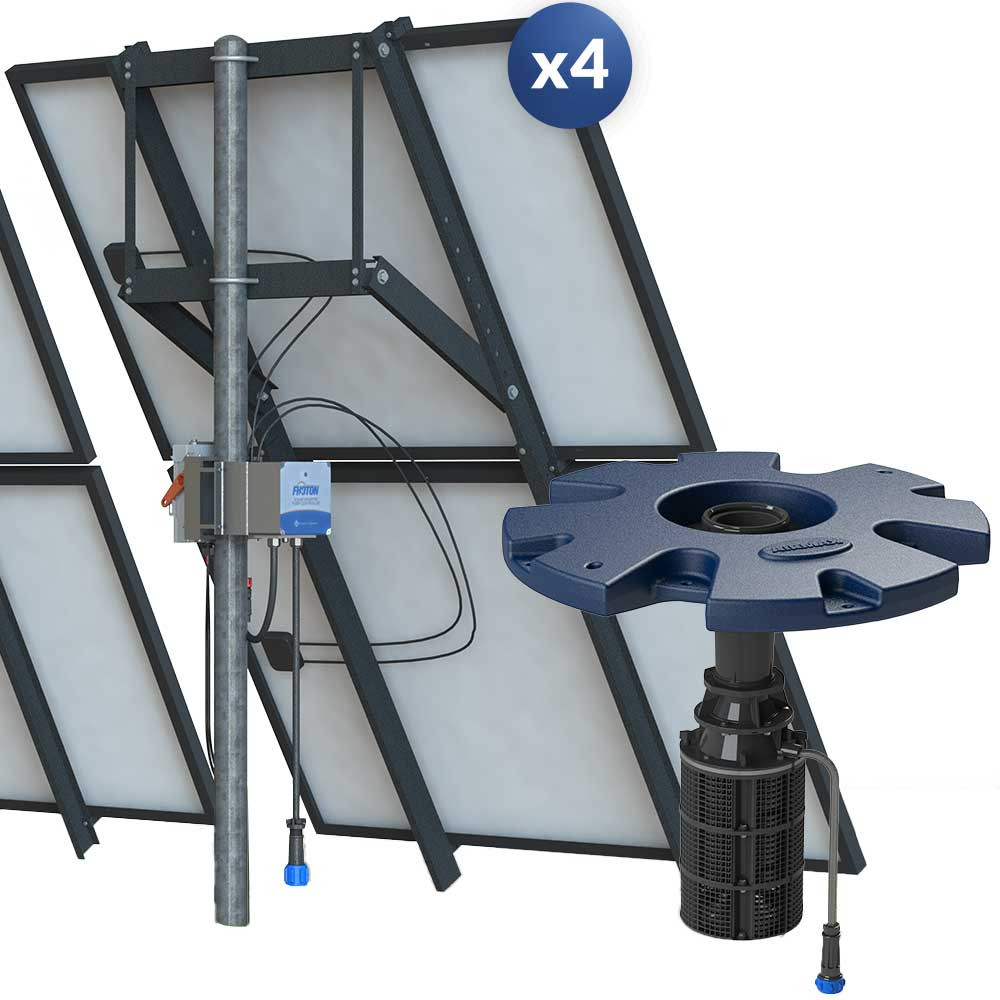

Purchase of SolarSeries Solar Pond Fountain Includes
- Fountain Motor with underwater Quick Disconnect
- 34″ Fountain Float
- Power Cord with Strain Relief

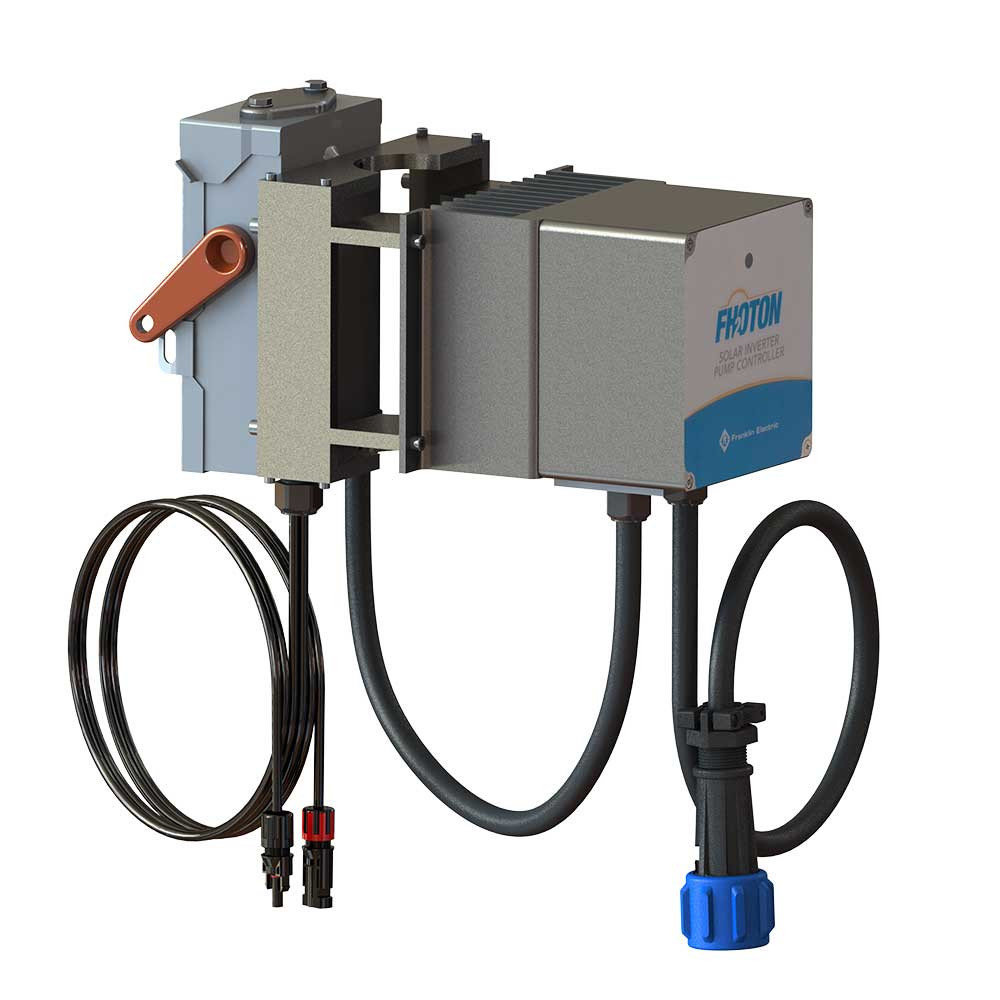

- Airmax Fountain Disconnect Switch & Controller Assembly
- American Made Solar Panels (4)

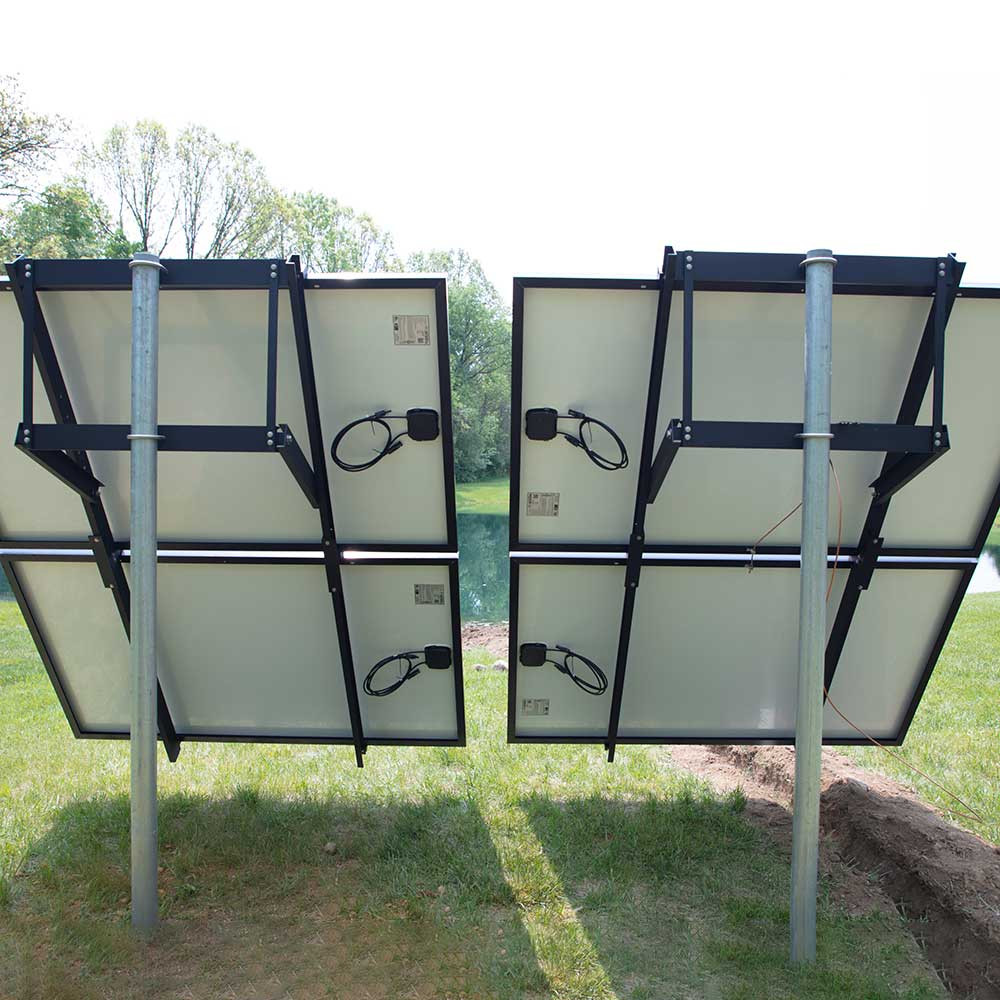

- EasyMount Assembly (2)
- Classic Spray Pattern (Pre-Installed – No Nozzle Required)
- Crown & Trumpet Spray Pattern (Interchangeable)
- Trumpet Spray Pattern (Interchangeable)
Technical Specifications
Airmax SolarSeries Pond Fountain | |
Recommended Pond Size | Aerates up to 1/2 to 1 Acre |
Float Diameter | 34" |
Minimum Operating Depth | 36 Inches |
Maximum Spray Height | 14 Feet |
Included Spray Patterns | Classic Crown & Trumpet Trumpet |
Solar Panel Type | Monocrystalline (60 Cell) |
Solar Panel Dimensions | 75"L x 41.5"W x 1.57" H |
Connector Type | MC4 |
Motor Type | Water-Cooled Stainless Steel Continuous Duty |
Motor Lead Length | 24 Inches |
Power Cord Lengths (ft.) | 100, 150, 200, 250, 300 |
Power Cord Protection Options | Standard PolyFlex Stainless-Steel Braiding |
System Components Included | Power Unit, Float, Power Cord Disconnect Switch w/ Controller (4) Solar Panels and (2) EasyMount Systems |
(2) Mounting Poles Required | 2.5" DIA (2.875" O.D. / 2.47" I.D) x 10'L (min) Schedule 40 Galvanized Steel Pole |
Power Unit, Electrical Components & Mounting Hardware Warranty | 3 Year |
Solar Panels Warranty | Limited 25 Year |
Spray Pattern Maximum Specs
Classic |
Crown & Trumpet |
Trumpet | |
Spray Height | 7.5 Feet | 9.5 Feet | 14 Feet |
Spray Width | 18 Feet | 32 Feet | 5.5 Feet |

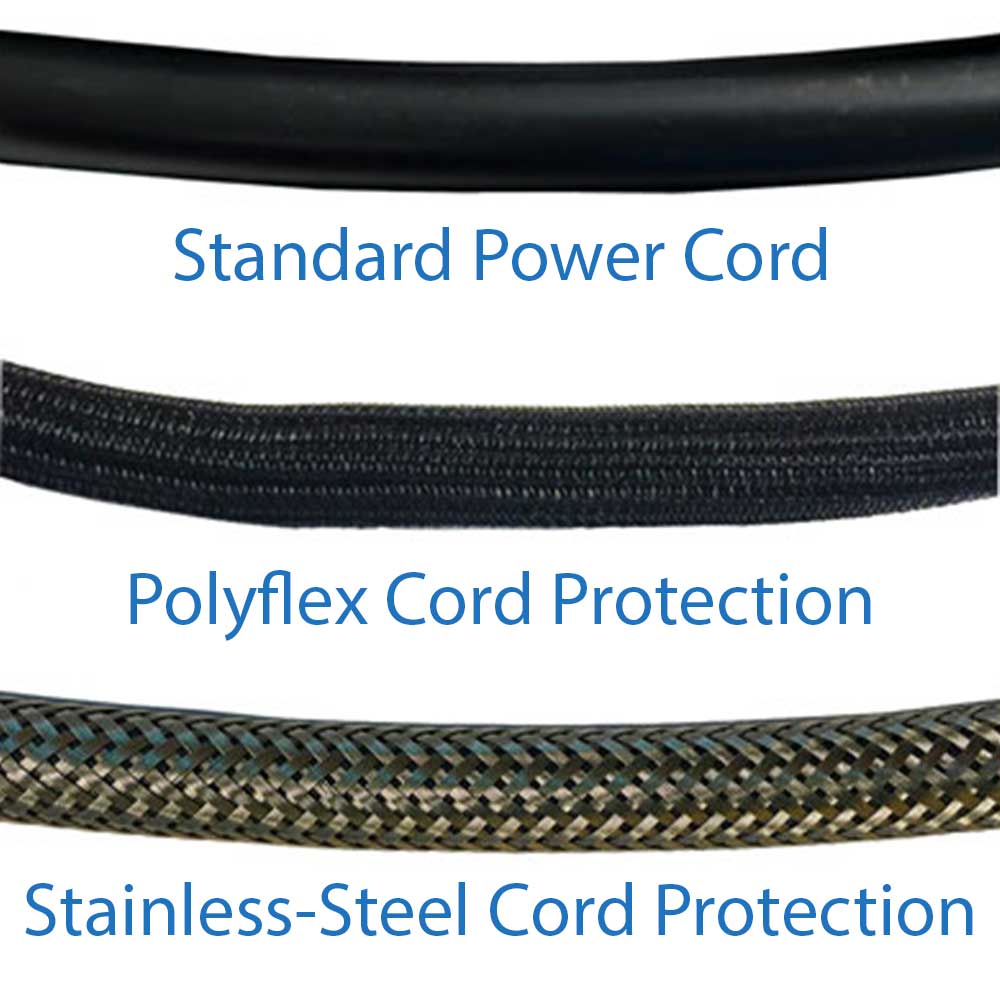

Power Cord Protection Options
All Airmax floating fountains come with a standard power cord; however, if you have nuisance pond wildlife like beavers, muskrats, or nutria that are notorious for chewing, you may want to explore Airmax cord protection options. Replacement cords can be expensive and time-consuming, so investing in cord protection is an excellent insurance policy for your fountain.
Airmax power cords can be wrapped with their durable PolyFlex protective sheathing, or if you are looking for something more substantial, we highly recommend the stainless-steel option for the ultimate power cord protection. Give us a call to have either protection option added to your fountain!
Airmax SolarSeries Fountain Videos
Solar Fountain Video
The Airmax SolarSeries Solar Powered Fountain uses renewable energy to produce super crisp and beautiful spray patterns. You can expect high quality materials for long lasting durability & an easy installation.
Solar Fountain Installation Video
Watch the Airmax team walk you through a step-by-step guide on the SolarSeries Installation process. All Airmax pond and lake solar fountains are proudly Made in the USA with quality and precision for long-lasting operation, ease of installation, and trouble-free maintenance.

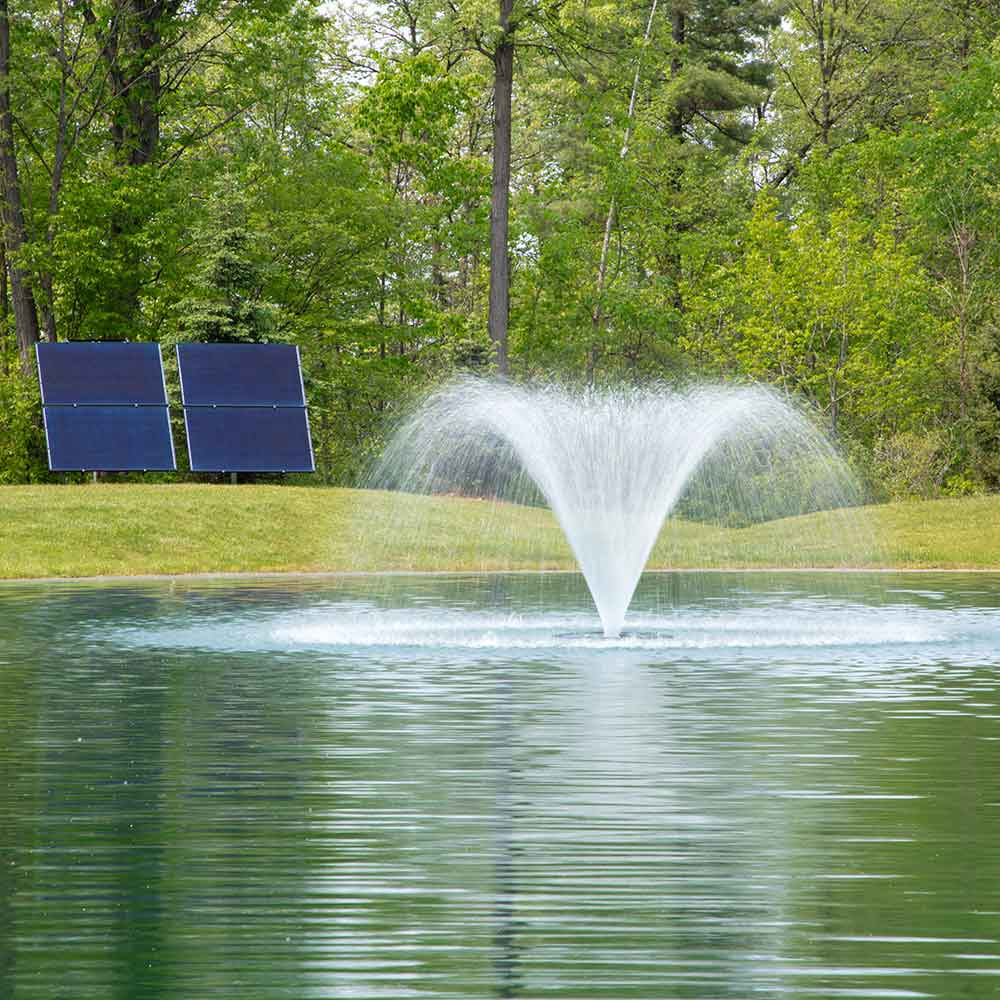

SolarSeries Fountain – Classic Pattern
The Airmax SolarSeries Classic pattern reaches heights up to 7.5 Feet during full sun.

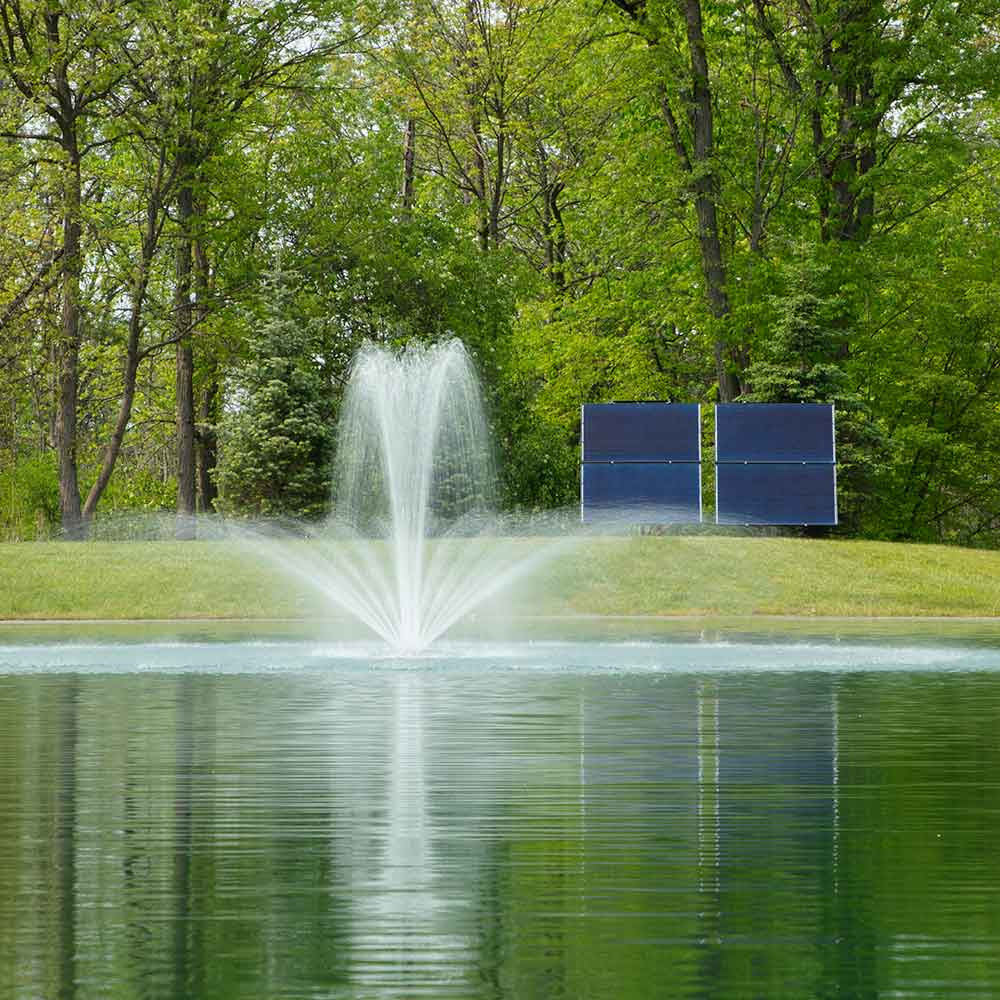

SolarSeries Fountain – Crown & Trumpet Pattern
A personal favorite, the Crown & Trumpet pattern gives a gorgeous two-tiered spray pattern.

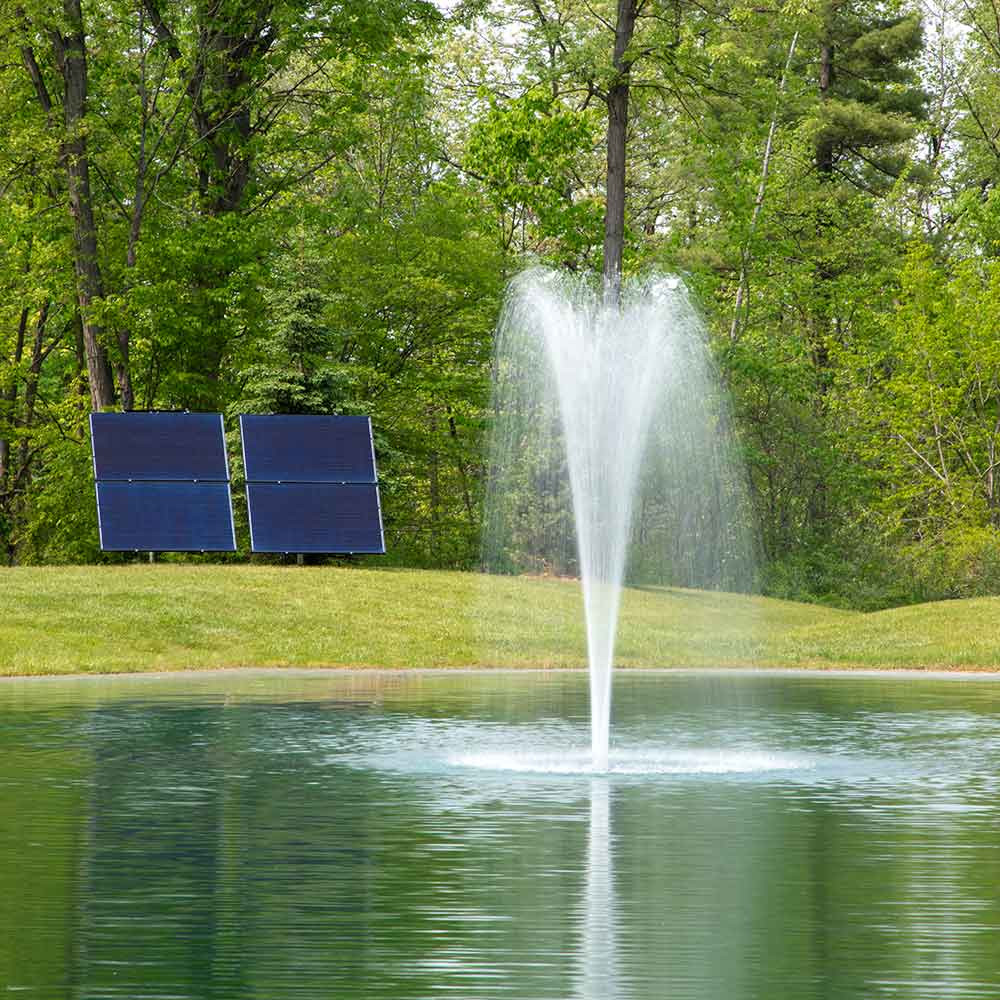

SolarSeries Fountain – Trumpet Pattern
The Trumpet pattern for the SolarSeries pond fountain makes a statement and can reach heights of up to 14 feet in full sun.
SolarSeries Solar Fountain Support Documents
Airmax makes the easy SolarSeries even easier with their great instruction guides. Read up on exactly how to install this solar powered fountain!
